DETAIL

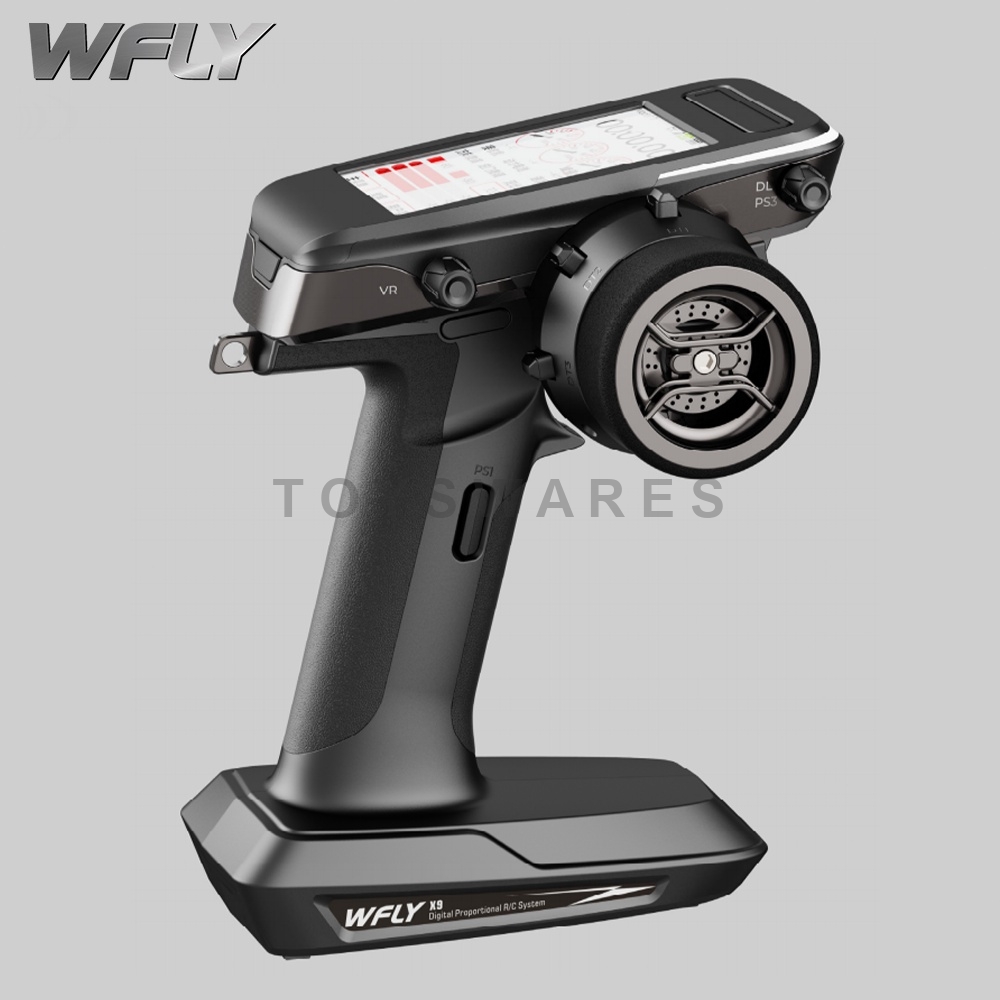

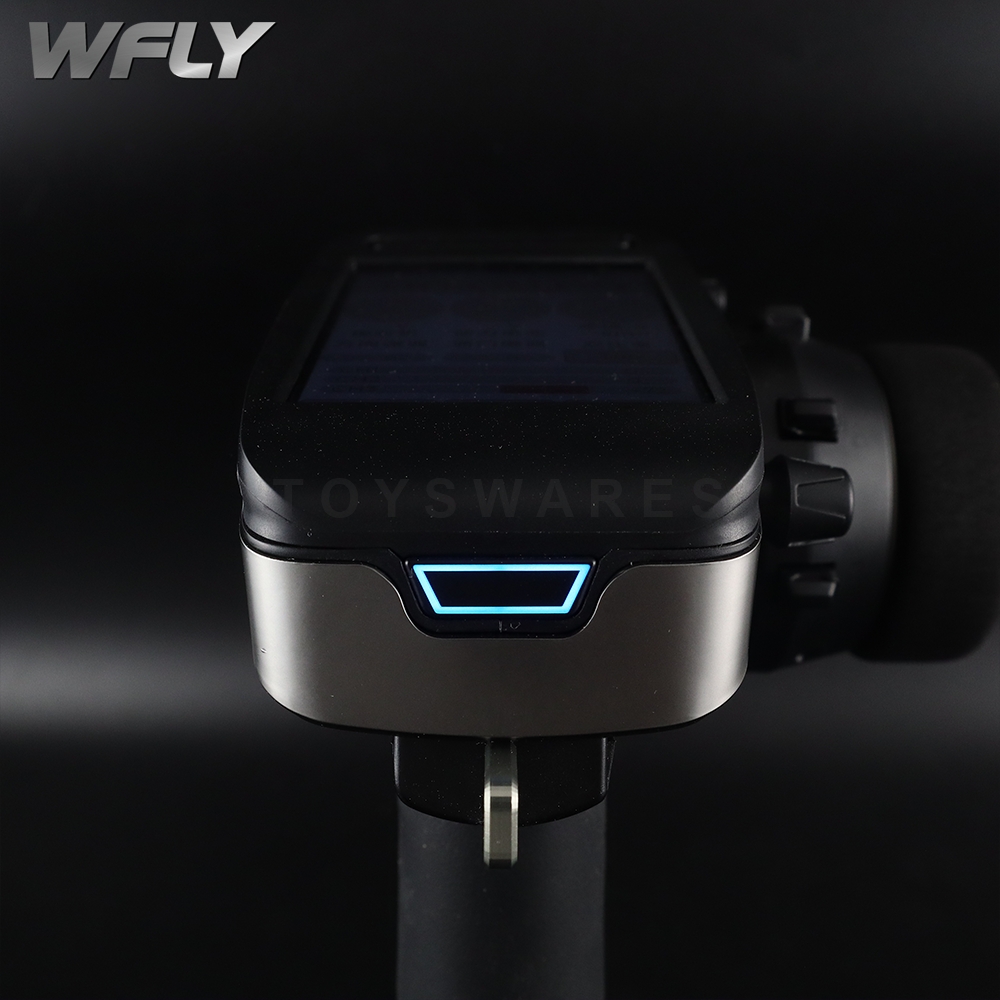

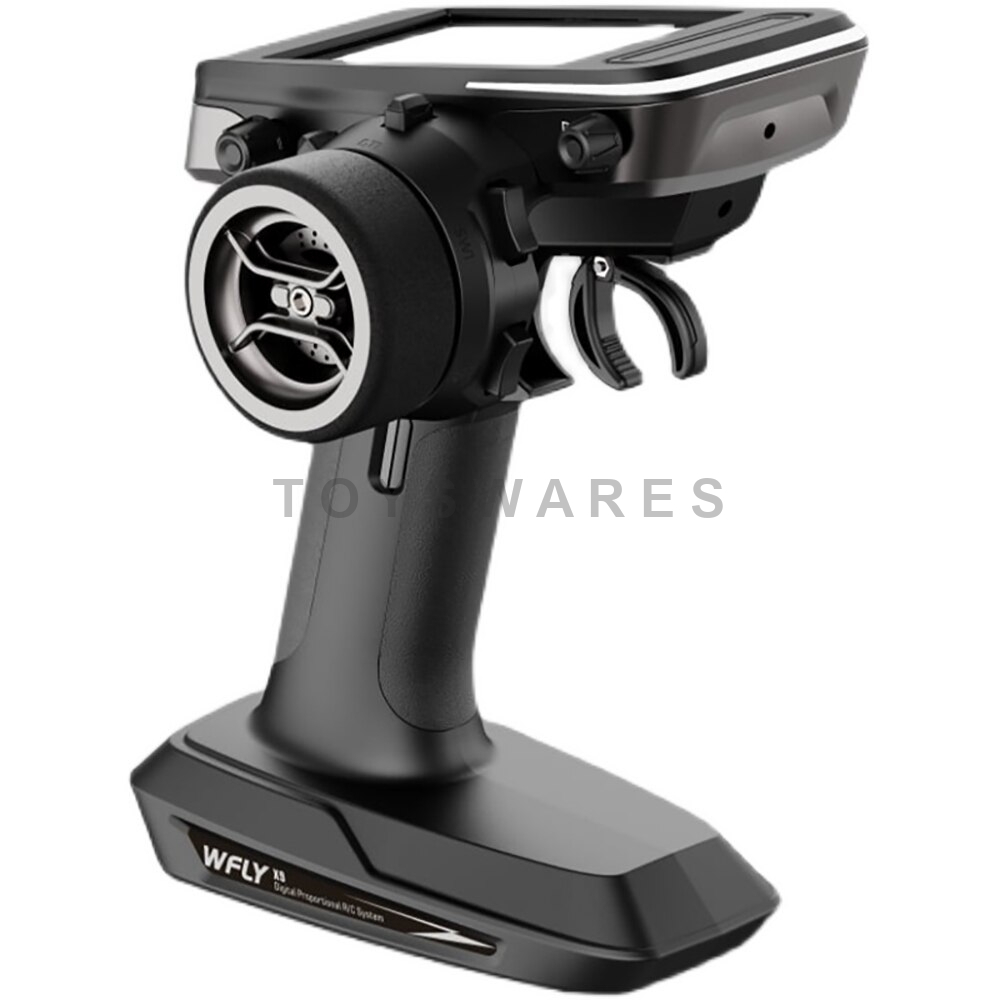

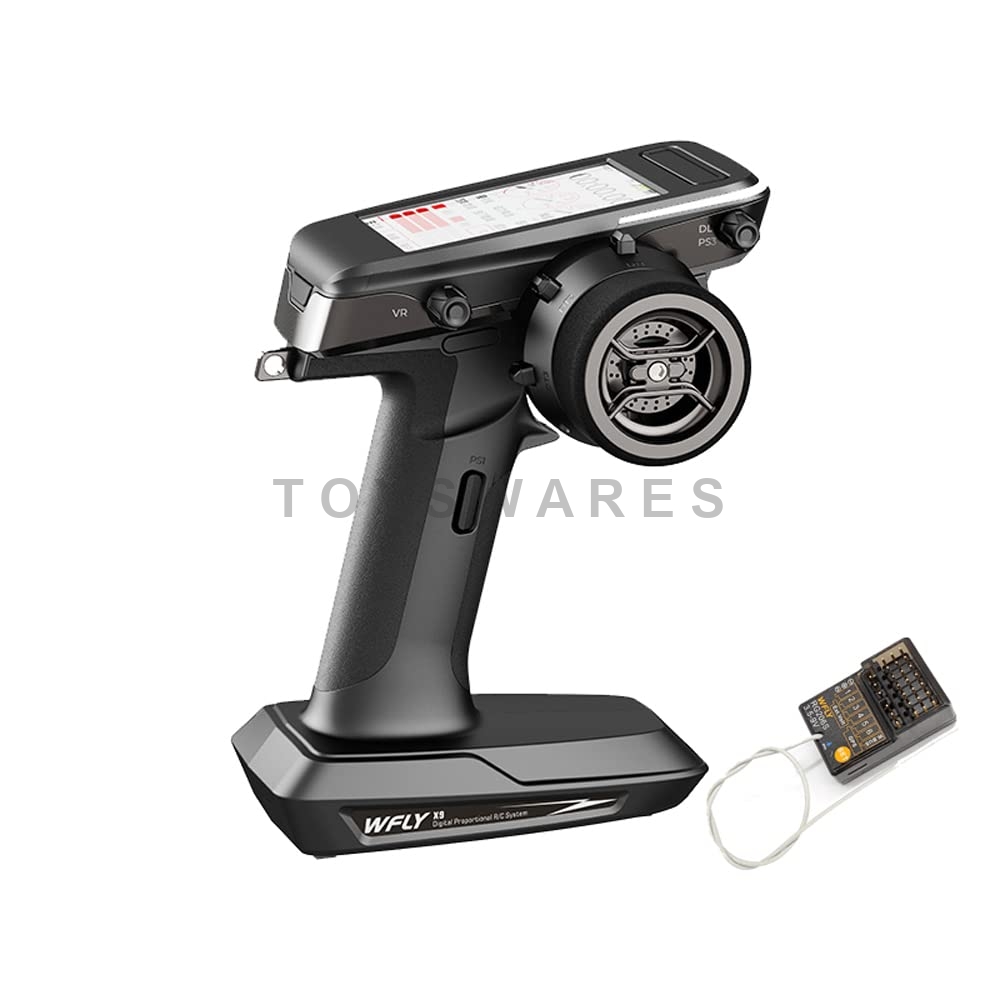

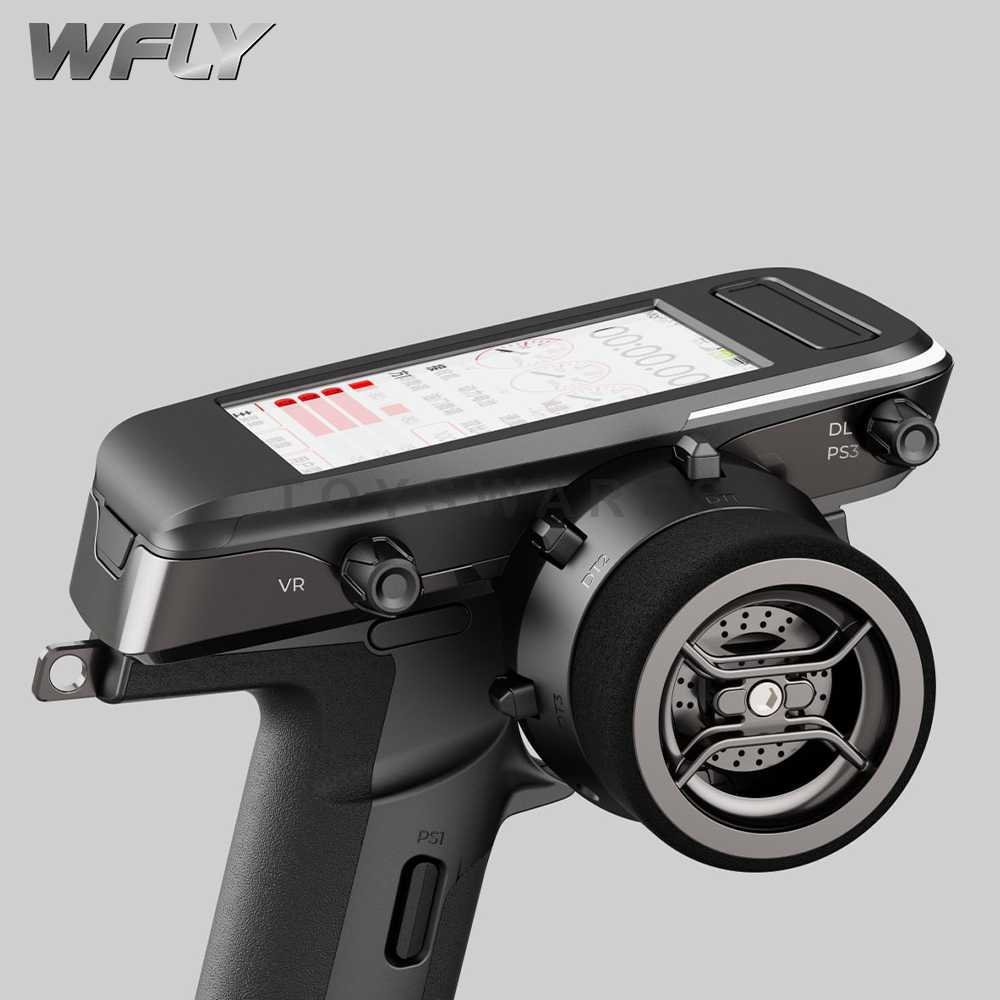

Transmitter Specification:
Model: X9
Channel: 9 Channels
Working Current: 260-400mA
Working Voltage: 3.5V-6.0V (1S Lithium Battery Or 4X AA Battery)
Frequency Hopping: FHSS
Modulation: LORA
Frequency Band: 2.4GHz (Two Way Transmmsion)
Transmitter Power: ≤100mw
Remote Control Distance: >600 Meters (No Interference In Space)
Temperature Range: -10℃ -+ 60℃
Simulator Connection: 3.5mm (PPM)
Application: Car,Ship,Tank,Robot
Storage: 40 Sets Of Models
Mixing Control: 5 Groups Of Programming Mixing Control
Language: Chinese/English
Voice: Support Voice Broadcast
Upgrade: USB Online Upgrade
Servo: Support 180/270°

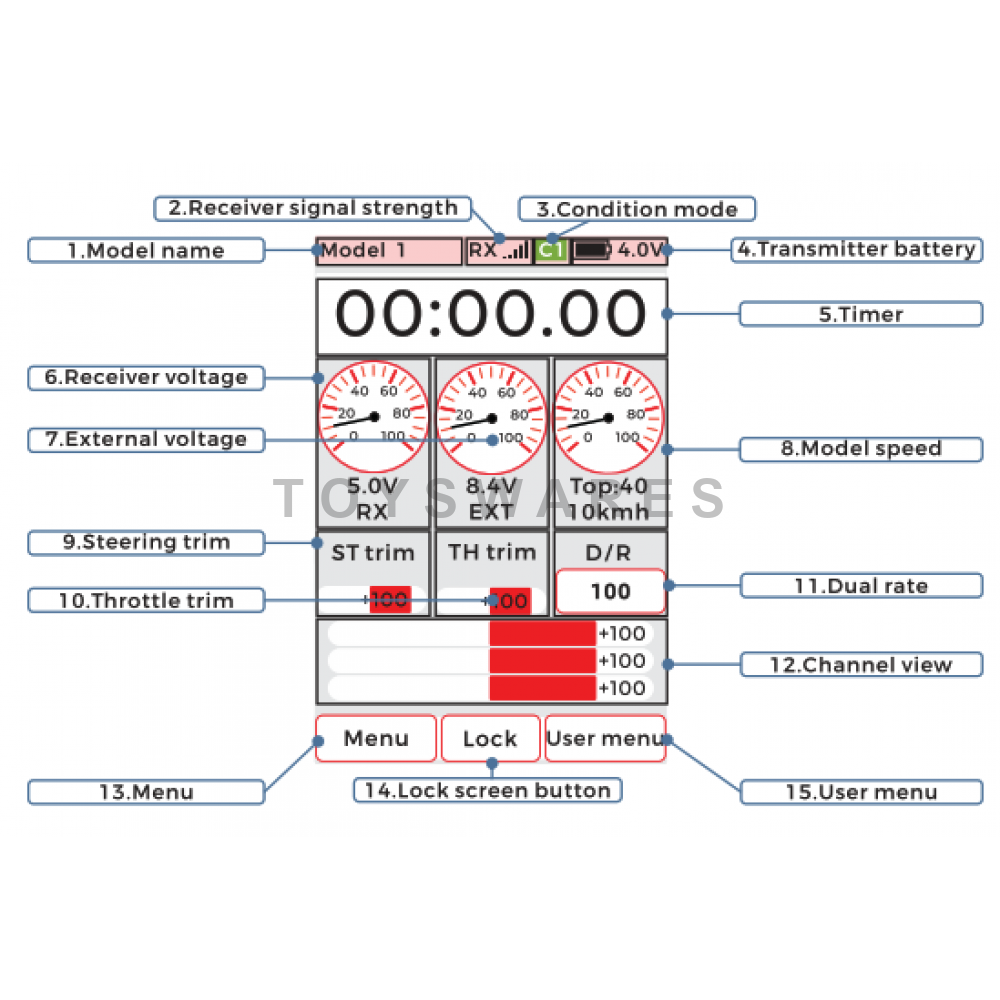

Screen: 3.5 Inch Capacitive Touch, 320*480 Colour Screen
Charging Support 1S Lithium Battery (Type-C)
Size: 185 X 147 X 110mm
Weight: 318g

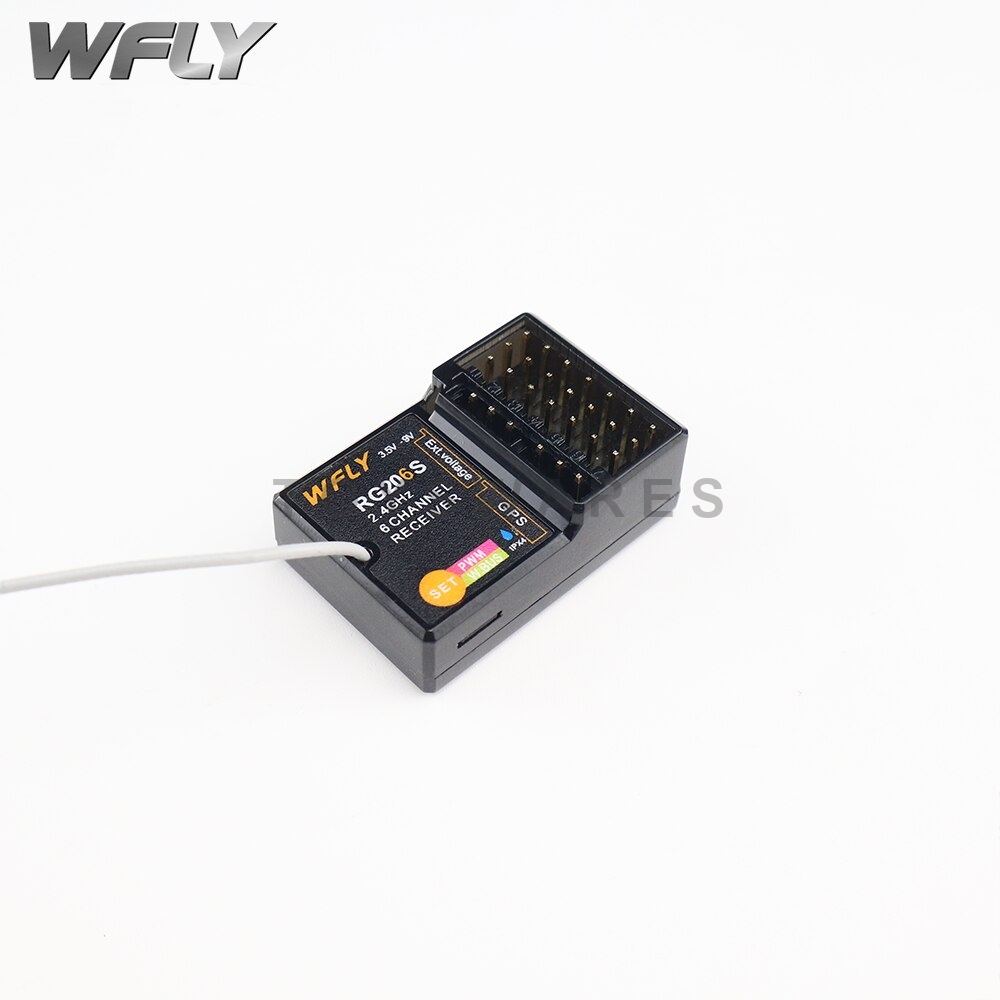

Receiver Specification:
Model: RG206S
Channel: 6-Way (PWM)
Working Current: 95mA
Working Voltage: 3.5V - 9.0V
Frequency Hopping: FHSS
Modulation: LORA
Frequency Band: 2.4GHz (Two Way Transmission)
GPS: Support Speed Measurement
W.BUS: Compatible With S.BUS
Resolution: Full Channel 4096 Resolution
Temperature Range: -10℃ -+ 60℃
External Voltage Detection: DC 1~36V
Upgrade: Online Upgrade
Servo: Support 180/270°
Size: 33.5 X 22.0 X 12.5mm
Weight: 7.6g
